Gas Pressure

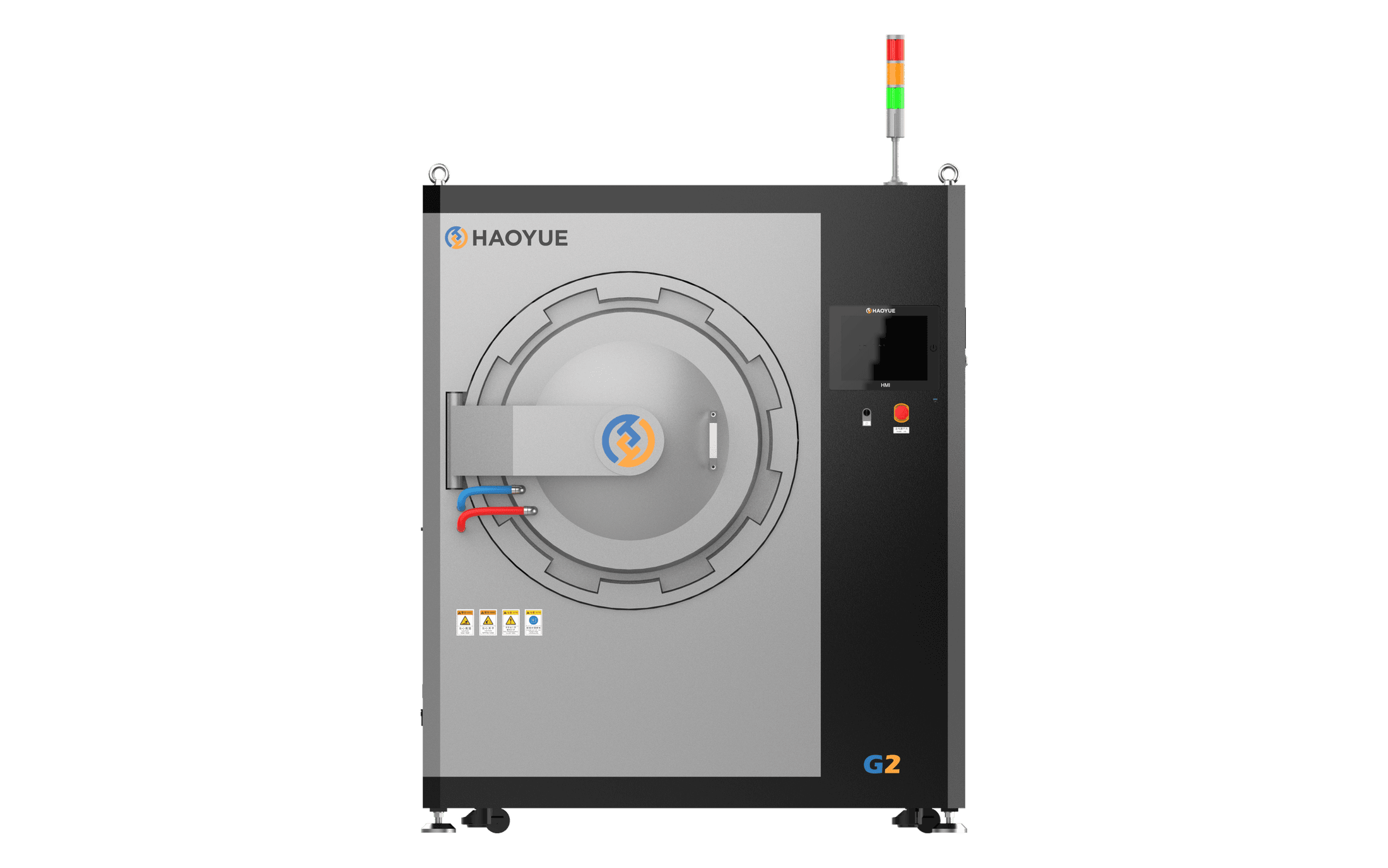

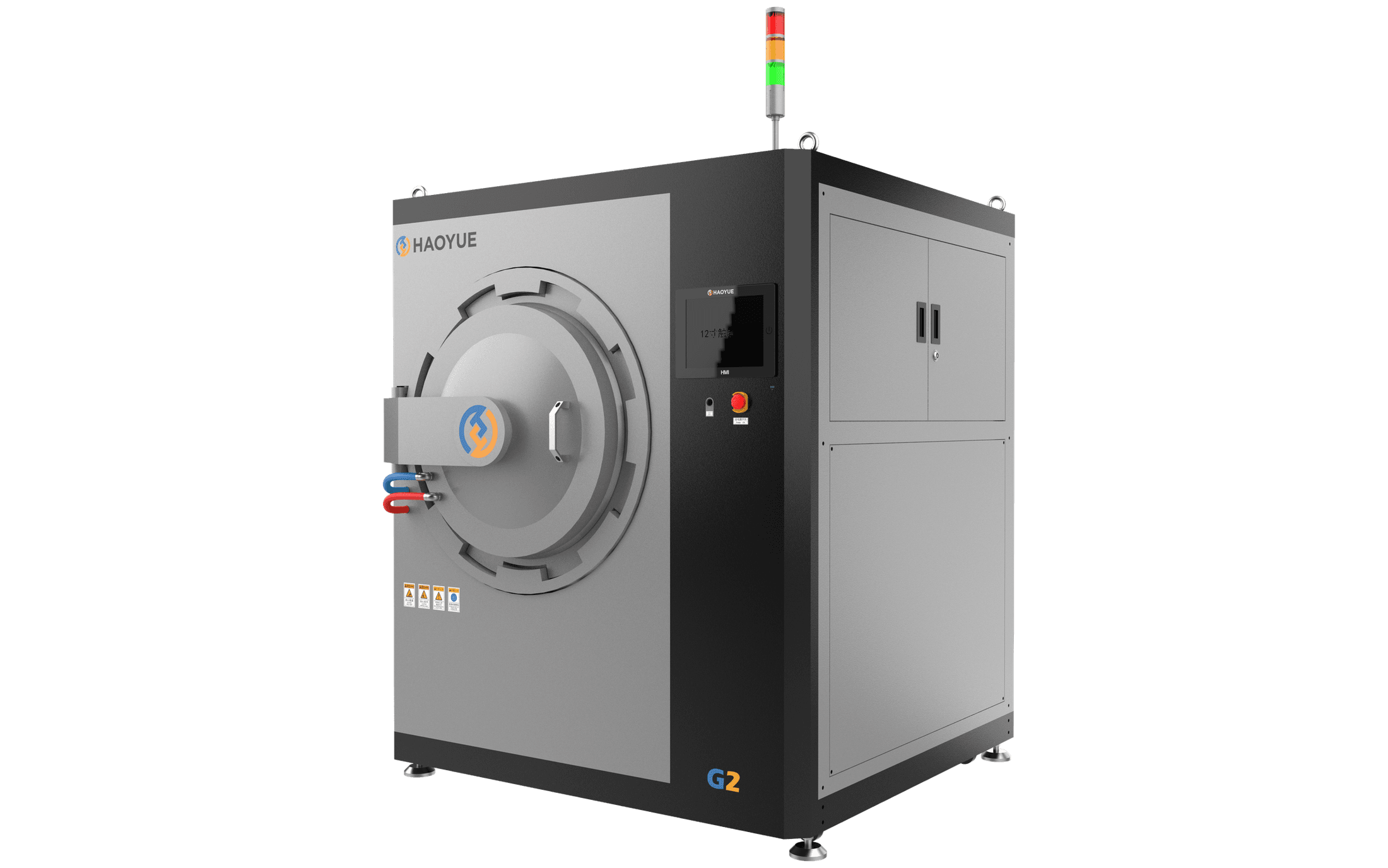

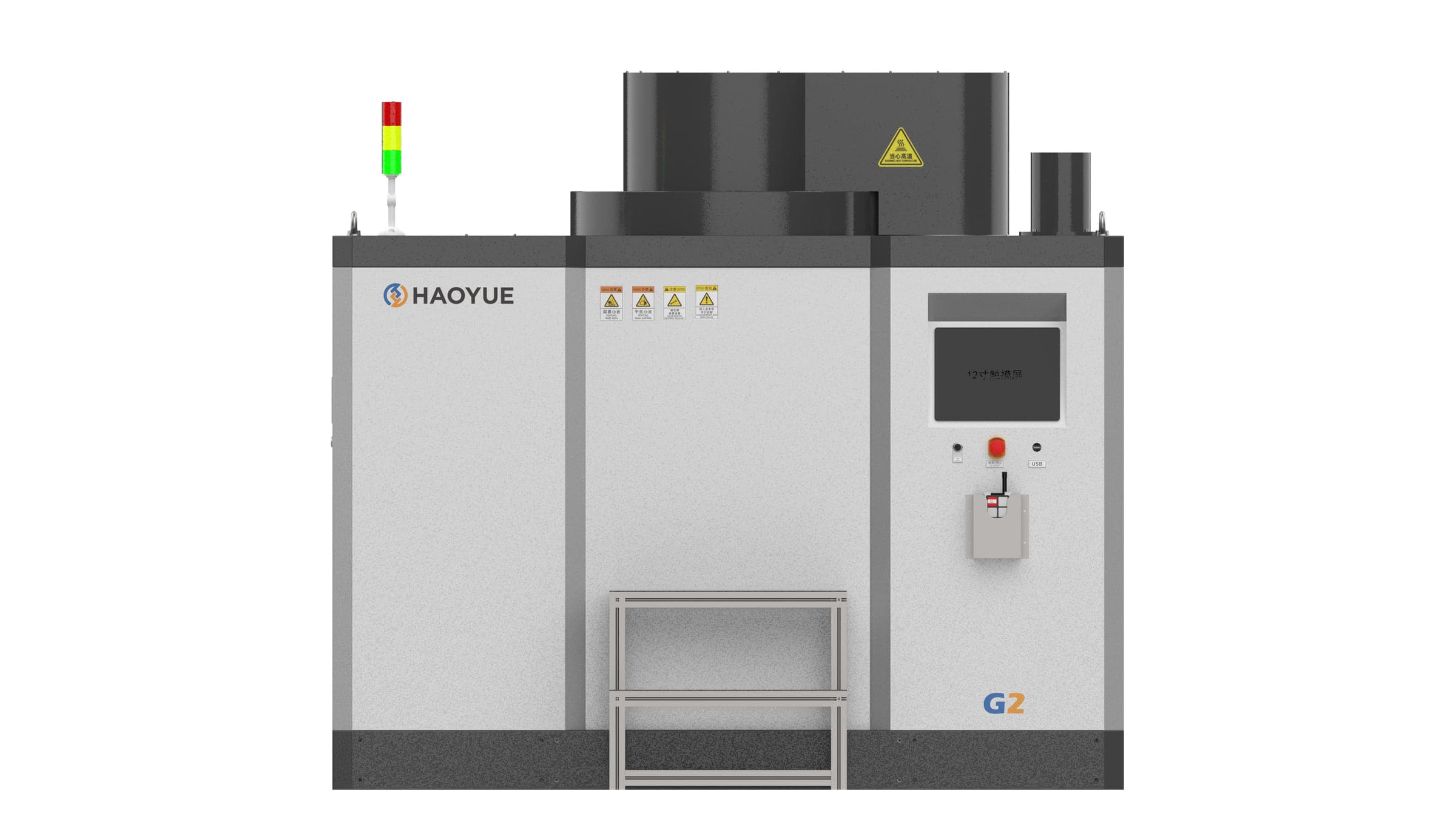

G2 Pressure Sintering Furnace
Vertical integrated pressure sintering furnace for advanced ceramic materials.
Integrates positive pressure dewaxing, vacuum dewaxing, vacuum sintering, partial pressure sintering, pressure sintering, atmosphere control, and cooling for high-pressure nitrogen or argon sintering.
Key Features
Technical Highlights

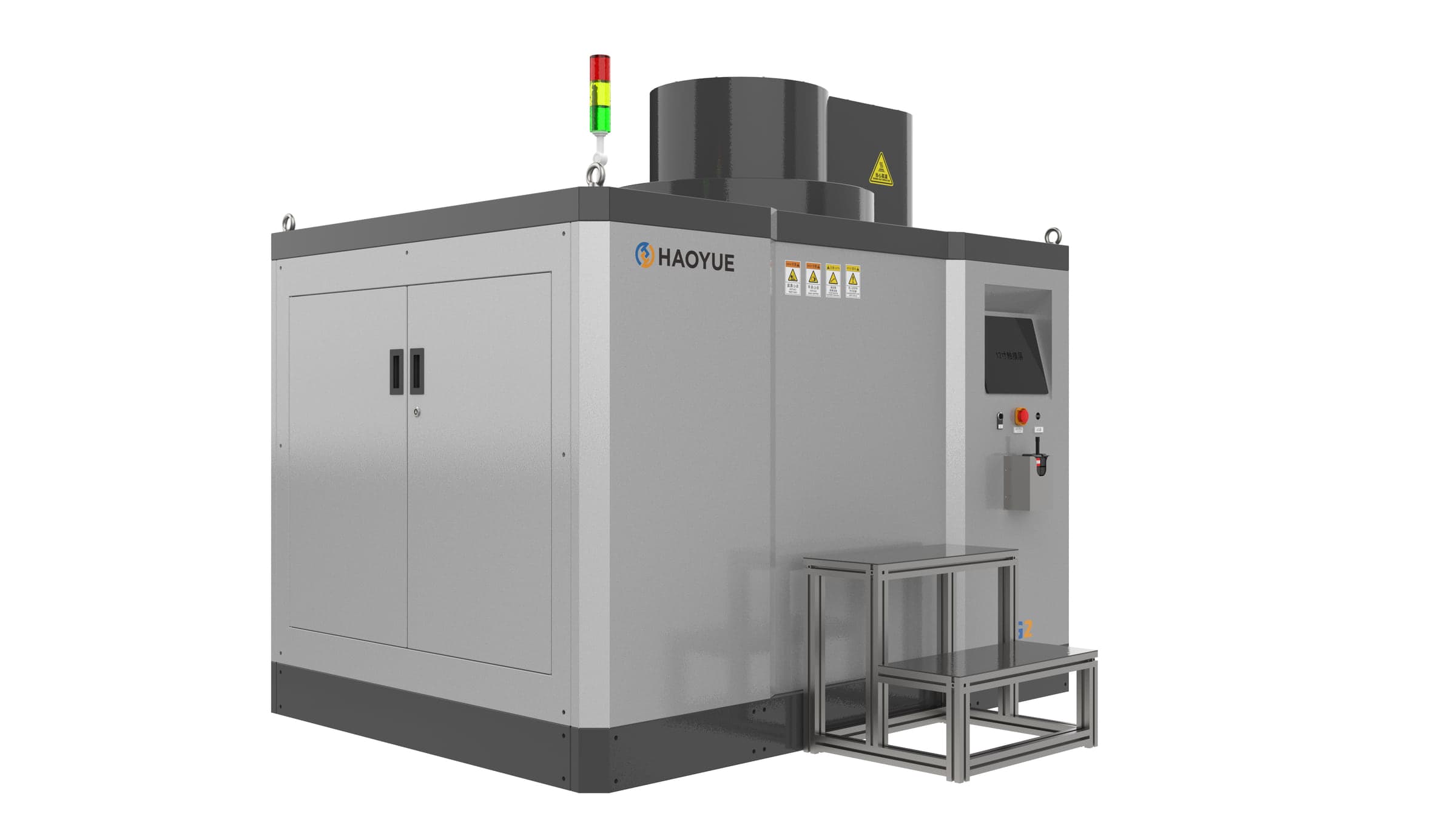

Highly integrated vertical top-opening structure improves loading accuracy, operation efficiency, and space utilization.

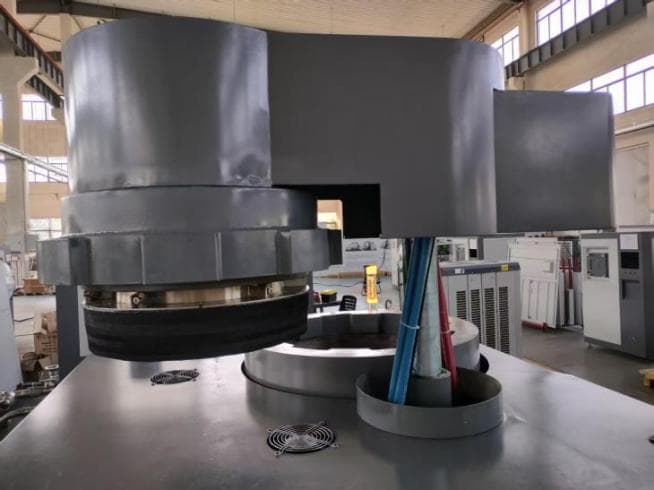

Automated furnace lid lifting and horizontal rotation support one-button opening and closing for safer operation.

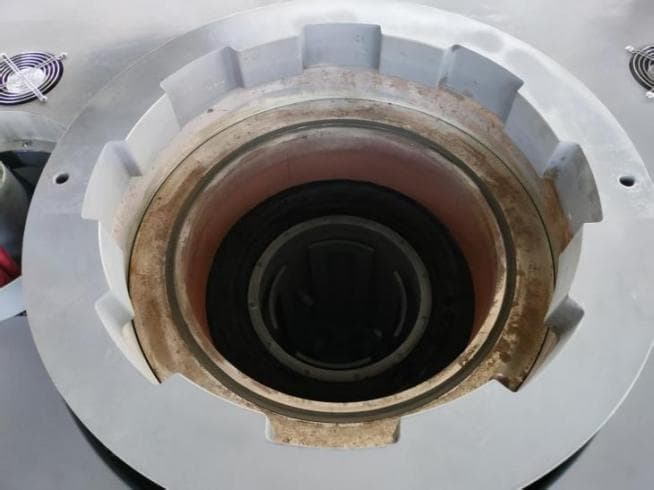

Thermal-field simulation, modular heating elements, and efficient insulation help improve temperature uniformity and energy efficiency.

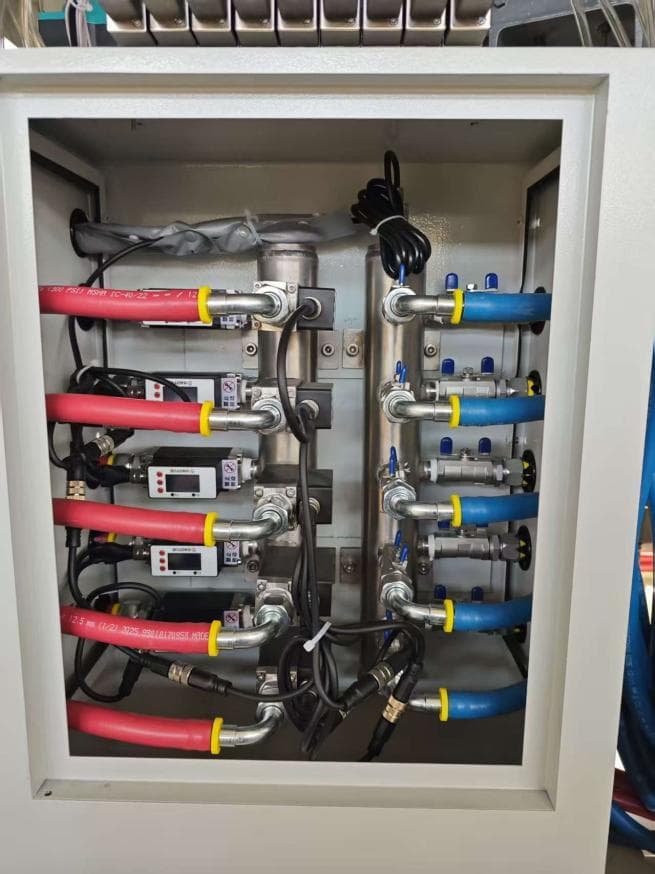

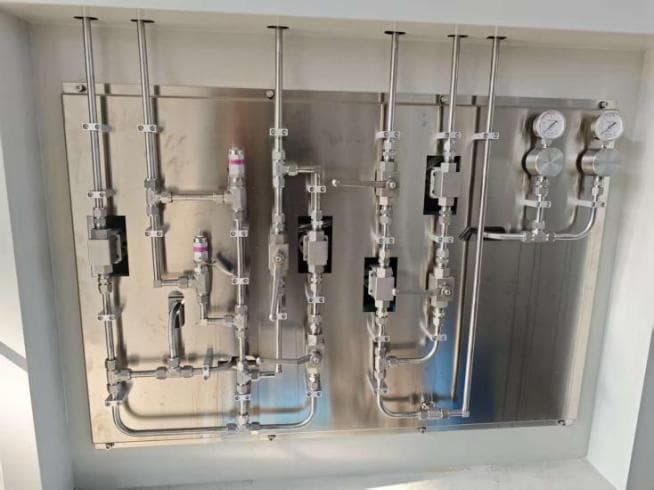

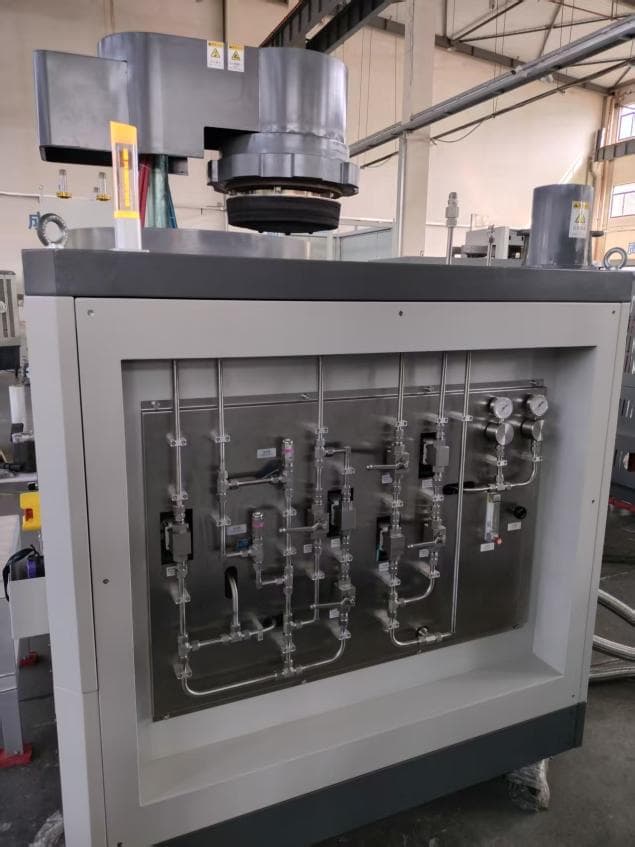

High-precision atmosphere pressure control automatically inflates or exhausts to maintain the required furnace pressure.
Data acquisition stores and retrieves key process parameters including voltage, current, temperature, pressure, and vacuum degree.

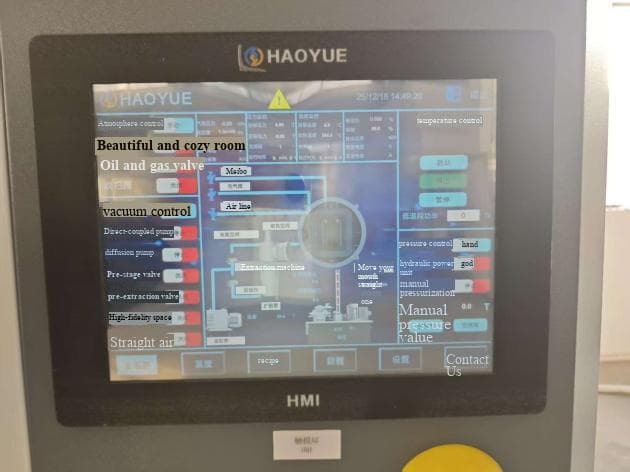

HMI, PLC, PID, and pressure sensing control provide real-time process monitoring and multi-level interlocking protection.
Rapid heating and cooling with efficient insulation can reduce electricity and gas consumption by more than 30%.
Suitable for high-pressure nitrogen or argon sintering of silicon nitride ceramic balls, ceramic cutting tools, and related materials.
Selection guide
Confirm the process window before quotation.
For faster engineering review, prepare the core process boundaries before sending an inquiry.
Can the chamber be customized?
Yes. Chamber size, heating zone, fixture, pressure, and atmosphere configuration should be confirmed through technical review.
Is a process test recommended?
For new materials or demanding density targets, a sample process discussion helps reduce equipment selection risk.
What should be sent with an inquiry?
Material, target temperature, pressure or load, atmosphere, workpiece size, and expected capacity are the most useful inputs.
Typical Applications
Related products
Review similar furnace options.
SPS
Spark Plasma Sintering System
Designed for rapid sintering of ceramics, composites, metals, and functional materials under controlled pressure and atmosphere.
Hot Pressing
Vacuum Hot Pressing Furnace
Combines heating, vacuum, and mechanical pressure for high density materials and demanding thermal processes.
Gas Pressure
Gas Pressure Sintering Furnace
Supports pressure atmosphere sintering for materials that require controlled gas pressure and stable thermal processing.
Gallery And Media
Review product images, equipment details, and available media before sending a technical inquiry.
Equipment Video
Equipment overview videos and process demonstrations are available on request when a public video is not yet attached to this product page.
Technical Downloads
G2 Pressure Sintering Inquiry Sheet
Prepared for chamber size, working pressure, temperature, atmosphere, and safety configuration.
