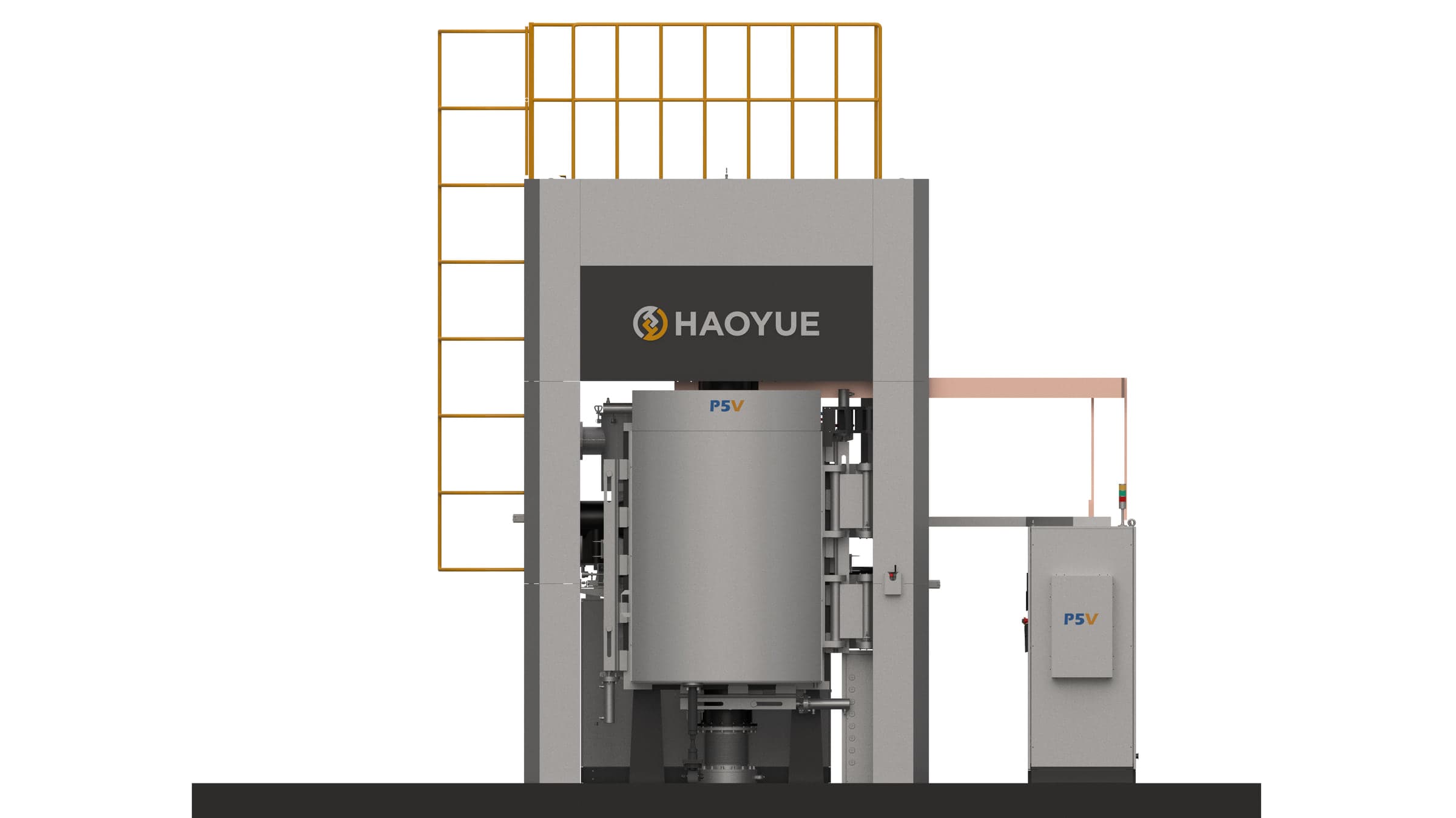

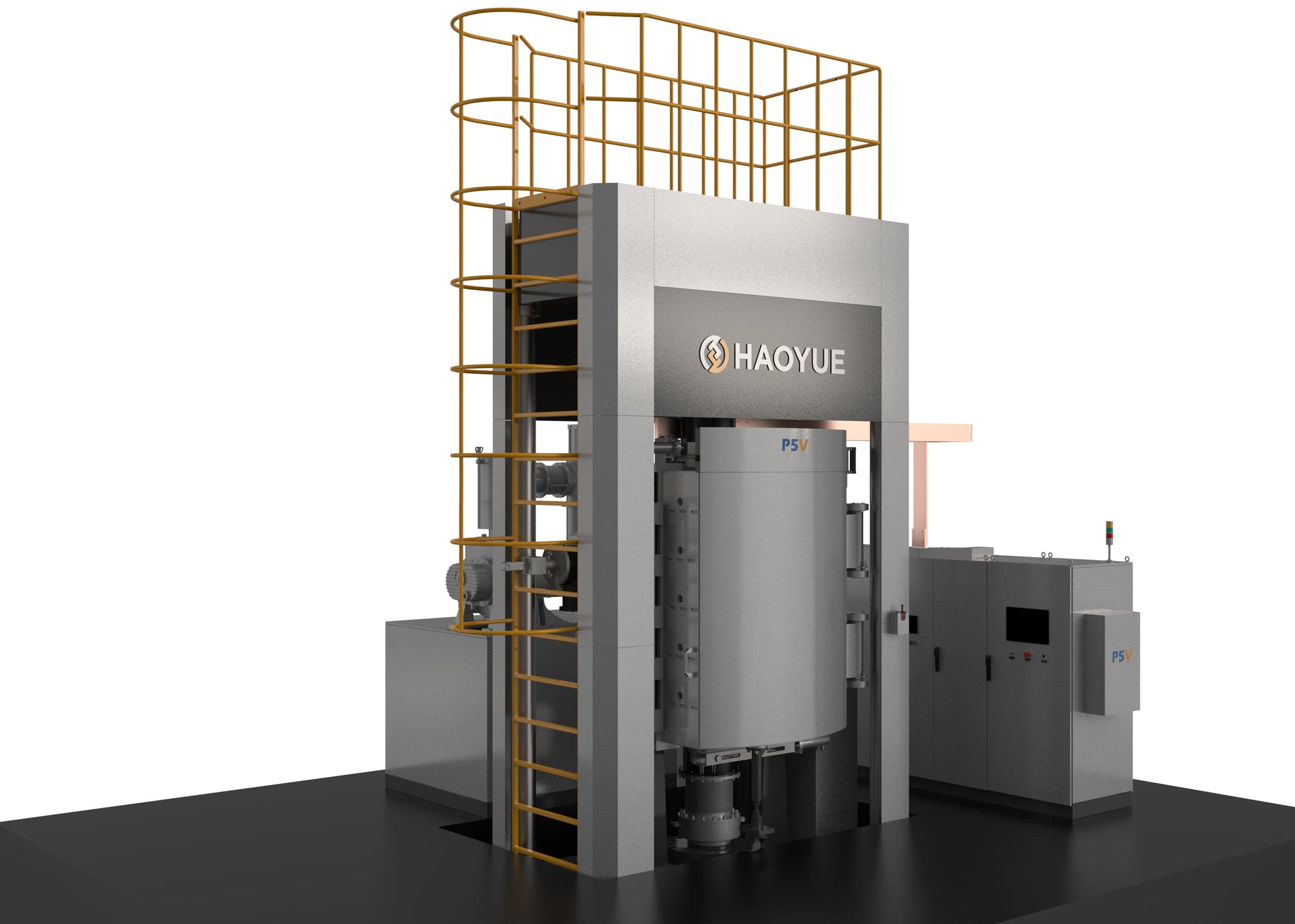

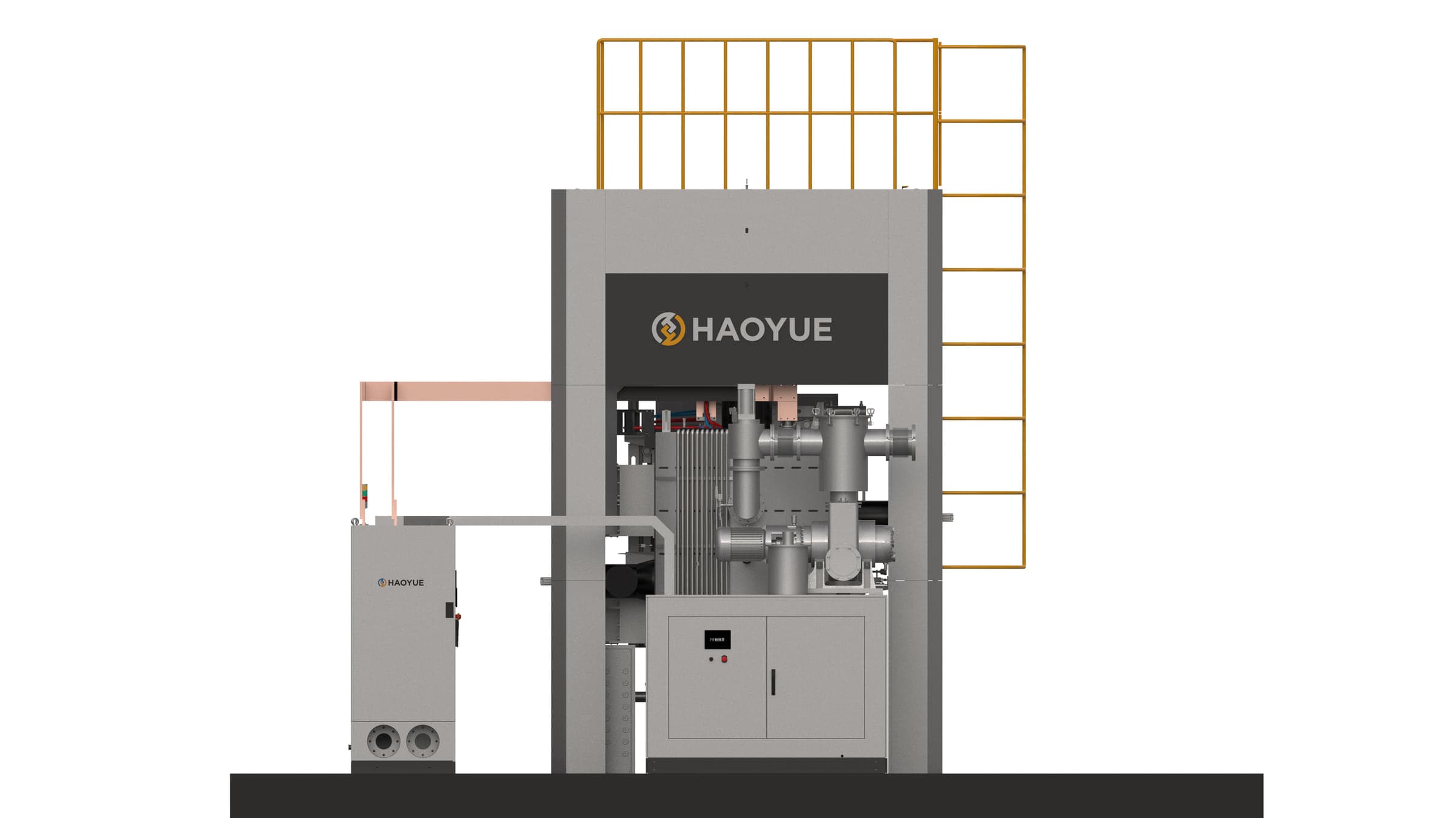

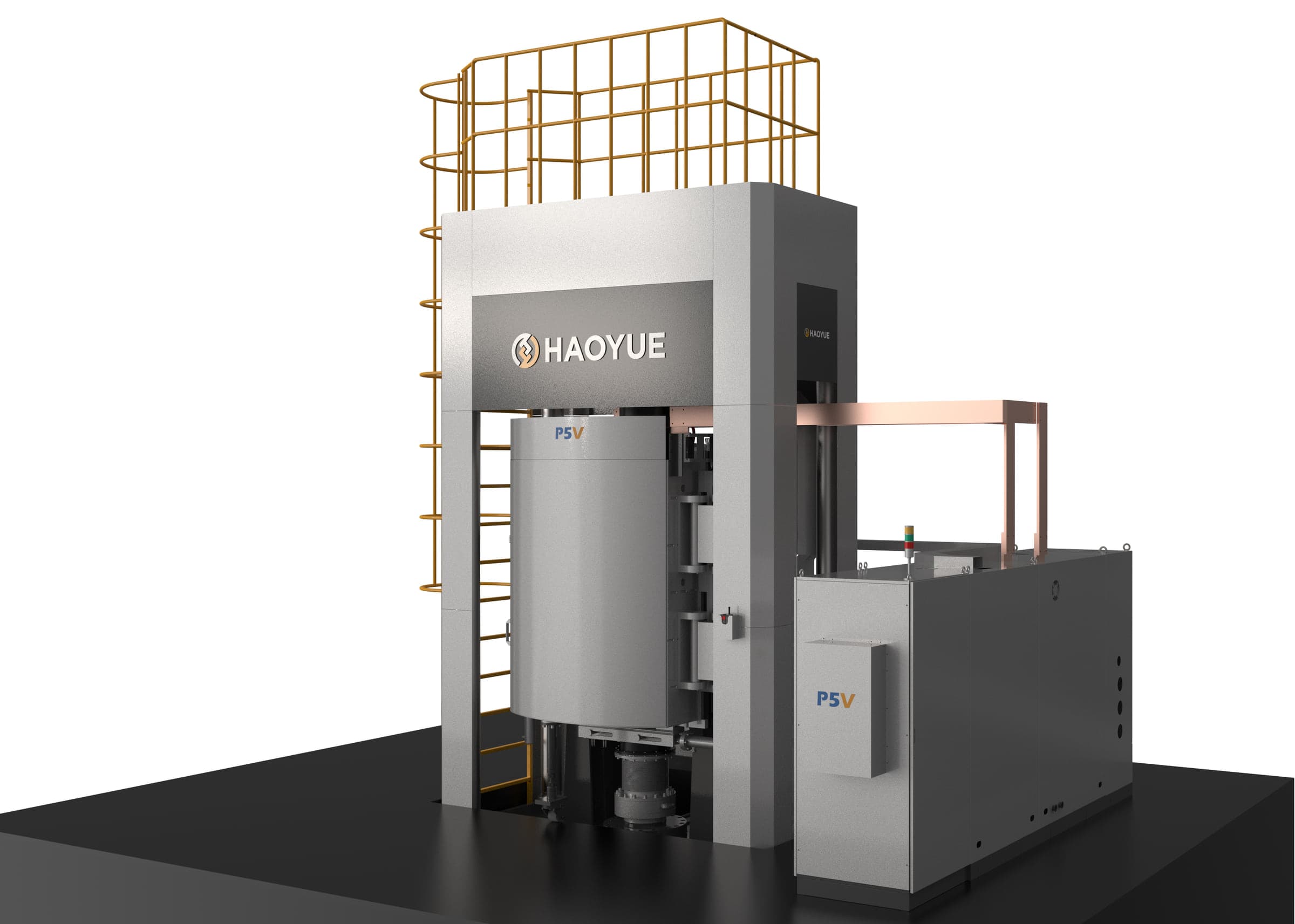

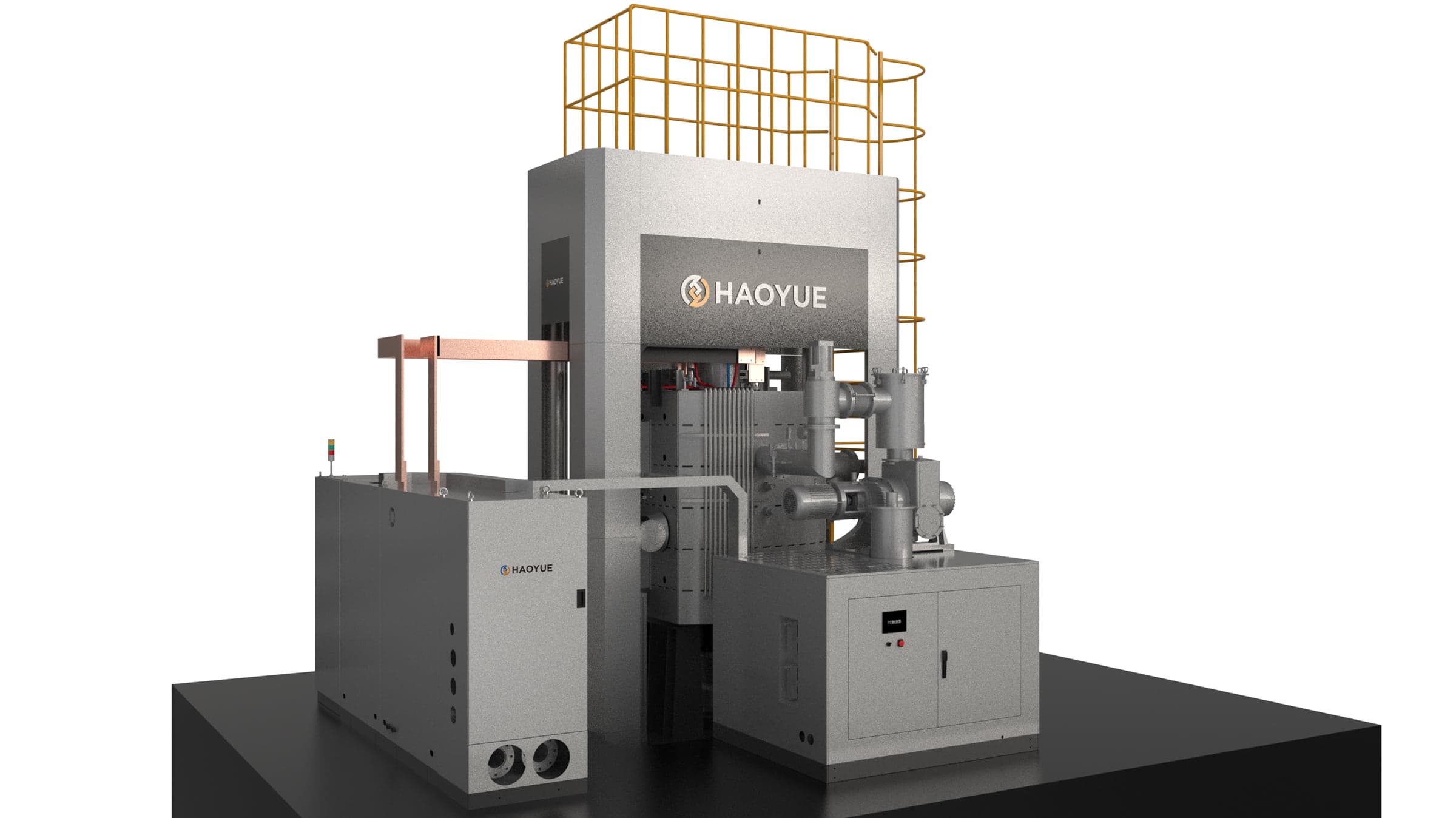

Vacuum Hot Pressing Furnace

Name: Vacuum Hot Pressing Furnace
Brand: Haoyue

High temperature pressure sintering for dense structural materials.

Combines heating, vacuum, and mechanical pressure for high density materials and demanding thermal processes.

Inquire About This Product Compare This Model Back To Series Brochure

Key Features

Technical Highlights

Vacuum and protective atmosphere support

Stable pressure loading

Customizable heating chamber

Suitable for demanding material densification

P5V Series Technical Parameters

Model comparison based on the P5V hot pressing furnace technical table.

Technical indicator	P5V standard edition	P5V Plus expanded version	P5V/II standard version with 2 chambers	P5V Plus/II expanded version with 2 chambers
Diameter of metal indenter	300mm	360mm	300mm	360mm
Diameter of graphite indenter	300mm	360mm	300mm	360mm
Maximum product diameter	Up to Φ300	Up to Φ360	Up to Φ300	Up to Φ360
Product height range	100mm <= H <= 300mm	100mm <= H <= 300mm	100mm <= H <= 300mm	100mm <= H <= 300mm
Maximum pressure	300t	400t	300t	400t
Pressure method	Bidirectional pressurization, optional unidirectional pressurization	Bidirectional pressurization, optional unidirectional pressurization	Bidirectional pressurization, optional unidirectional pressurization	Bidirectional pressurization, optional unidirectional pressurization
Maximum stroke	200mm + 200mm	200mm + 200mm	200mm + 200mm	200mm + 200mm
Pressure head opening height	700mm	700mm	700mm	700mm
Outline dimensions of mold sleeve	Φ500 x 300mm	Φ560 x 300mm	Φ500 x 300mm	Φ560 x 300mm
Product dimensions (DWH)	To be confirmed	To be confirmed	To be confirmed	To be confirmed

Selection guide

Confirm the process window before quotation.

For faster engineering review, prepare the core process boundaries before sending an inquiry.

Target temperature and working atmosphere

Sample, mold, or workpiece dimensions

Pressure, load, or gas-pressure requirements

Expected batch capacity and automation level

Can the chamber be customized?

Yes. Chamber size, heating zone, fixture, pressure, and atmosphere configuration should be confirmed through technical review.

Is a process test recommended?

For new materials or demanding density targets, a sample process discussion helps reduce equipment selection risk.

What should be sent with an inquiry?

Material, target temperature, pressure or load, atmosphere, workpiece size, and expected capacity are the most useful inputs.

Typical Applications

Advanced ceramicsCarbon materialsProtective materials
