Gas pressure sintering
G Series gas pressure furnaces for advanced ceramic sintering.
Use the G Series when silicon nitride, carbide, or structural ceramic parts need controlled high-temperature gas pressure sintering.
Gas pressure control
Advanced ceramic sintering
Safety interlocks
Vertical and horizontal layouts
Materials And Applications
Typical materials
silicon nitridesilicon carbideceramic toolsstructural ceramics
Application fields
Gas pressure sinteringCeramic ballsCutting toolsStructural ceramics
| Model | Temperature | Pressure / Load | Atmosphere | Scale | Best For |
|---|---|---|---|---|---|
| G2 | Up to 2000 C | 0-9.8 MPa | Ar / N2 | Lab / pilot | Silicon nitride and ceramic trials |
| G4 | High temperature | Project pressure range | Ar / N2 | Pilot / production | Vertical gas pressure sintering |
| G5 | High temperature | Project pressure range | Ar / N2 | Production | Horizontal industrial batches |

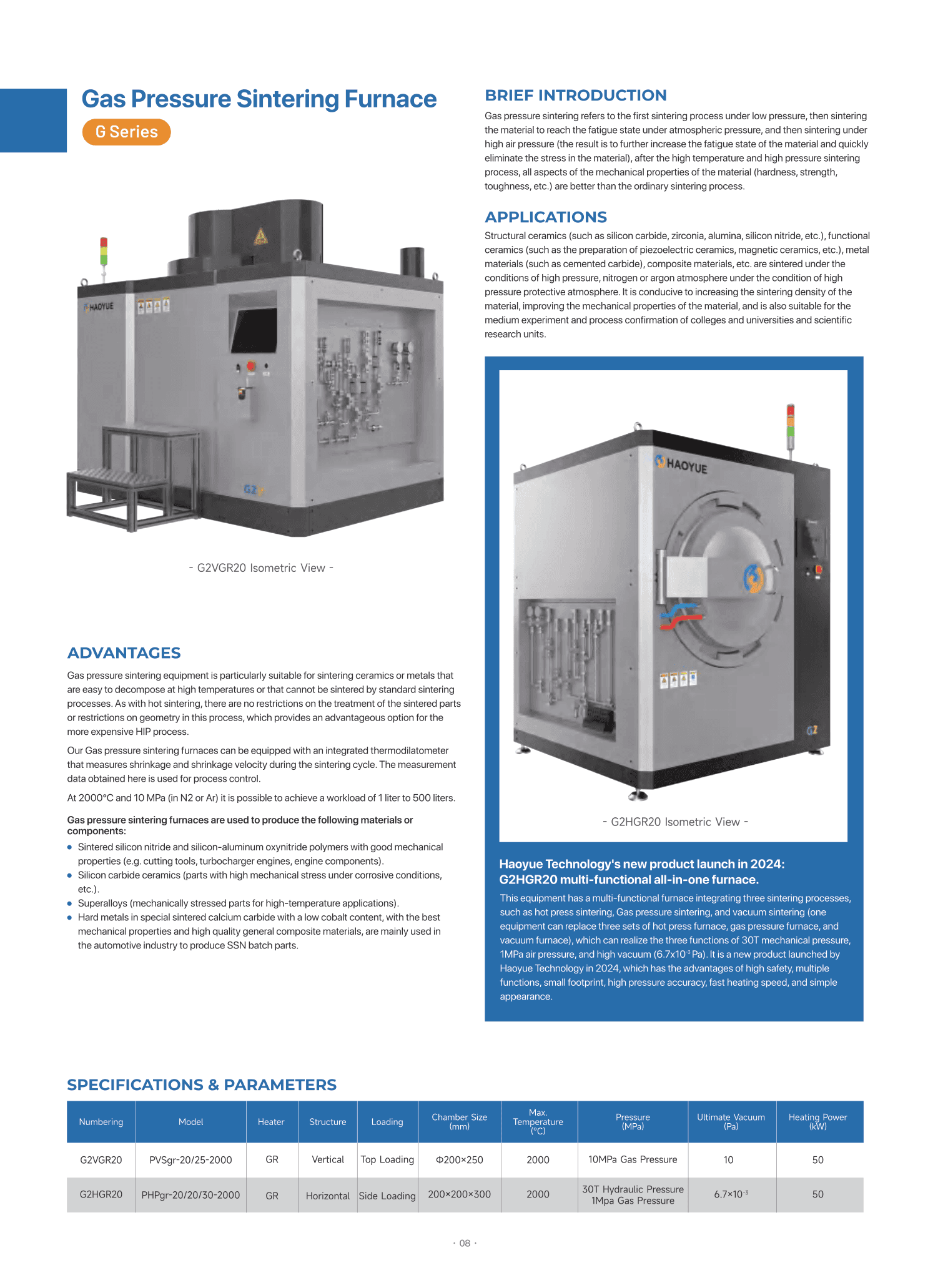

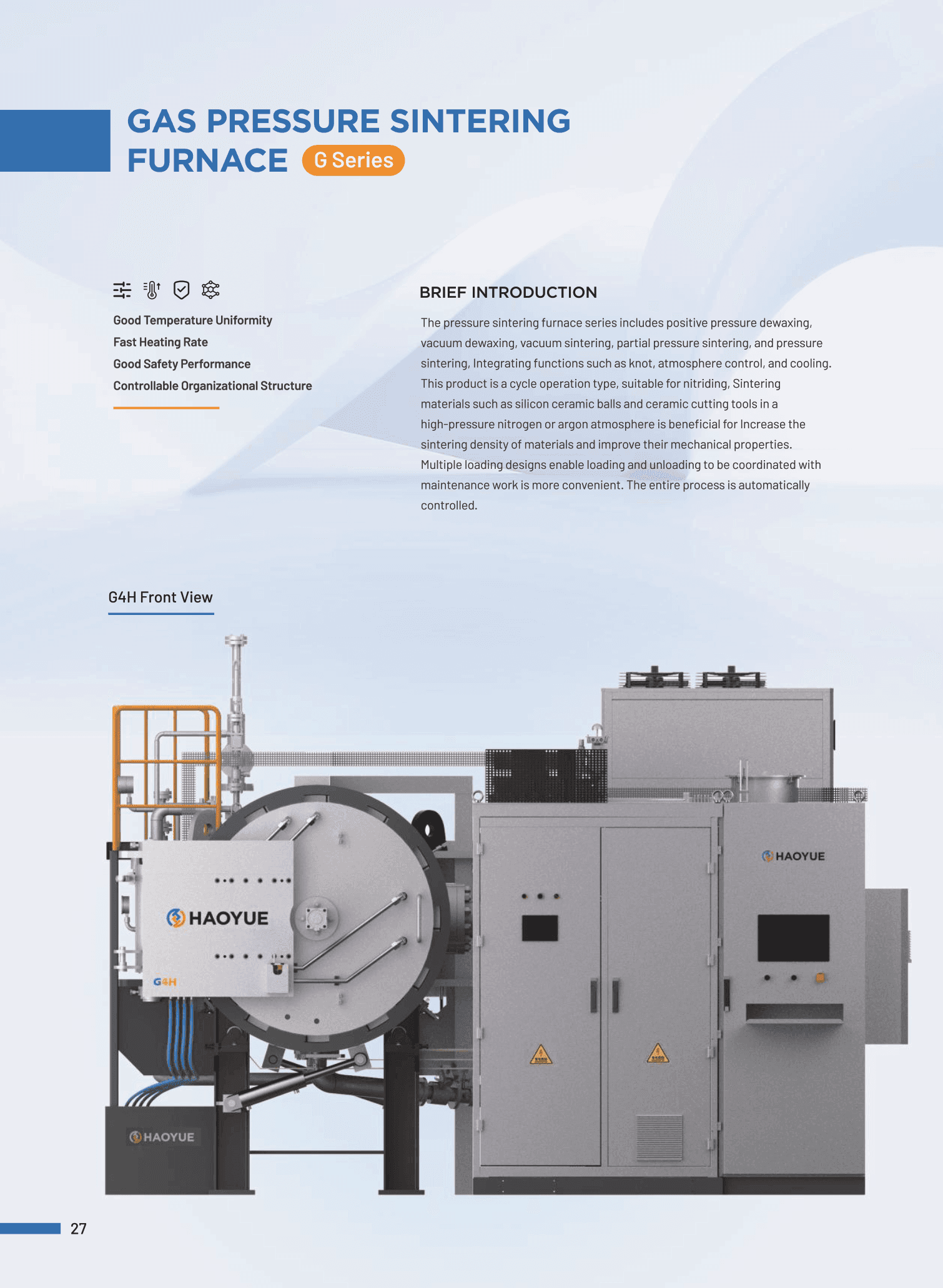

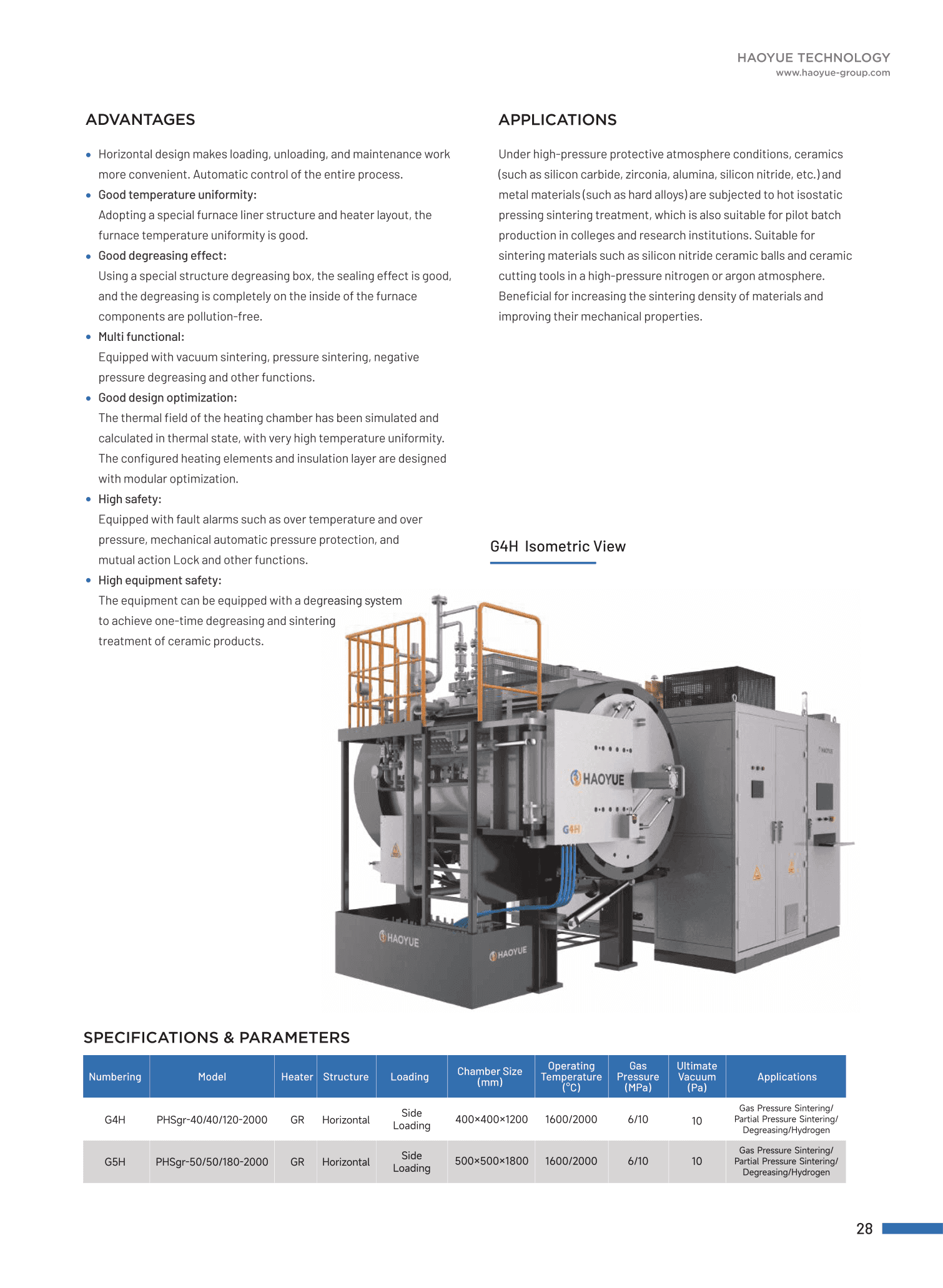

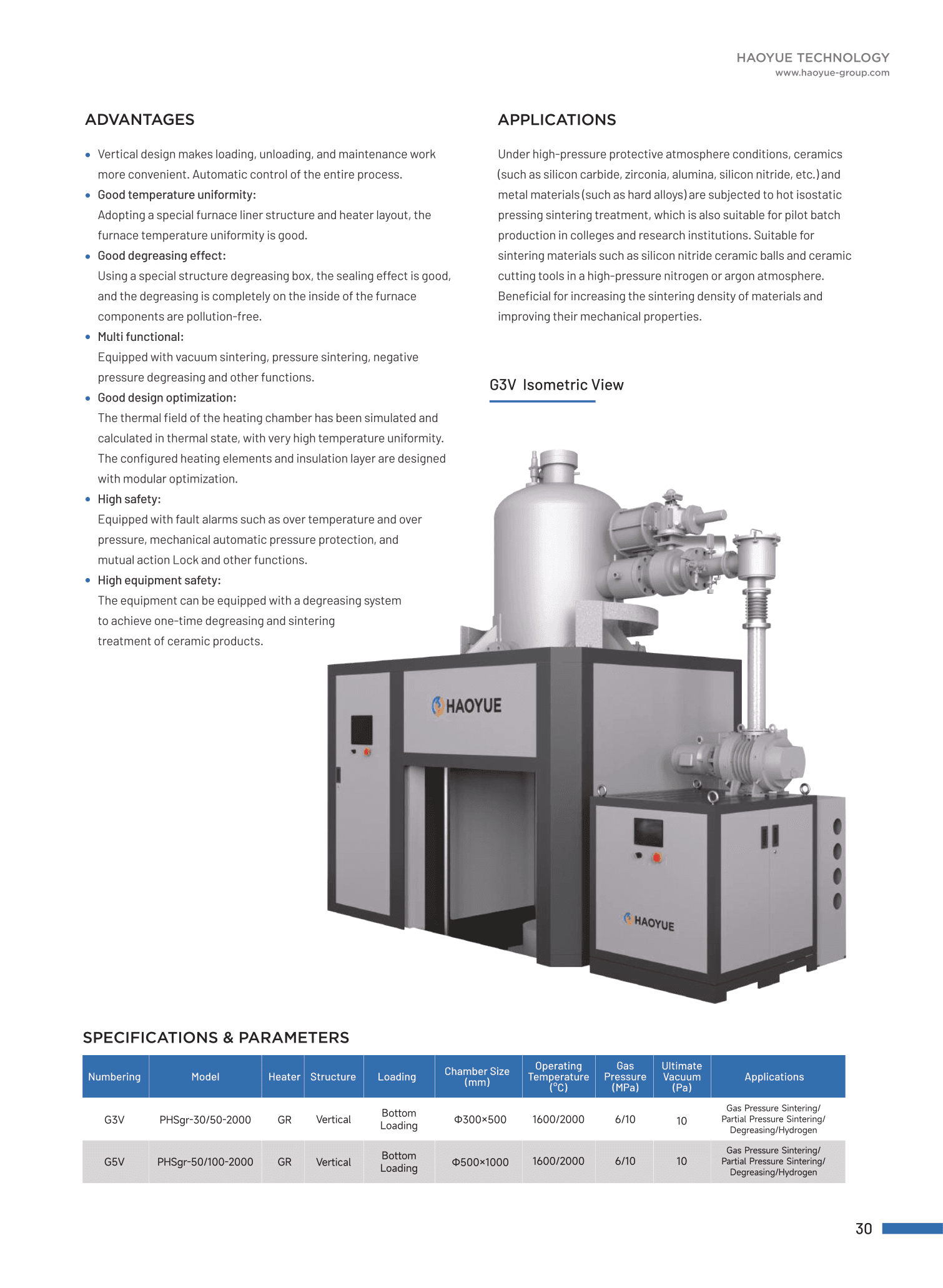

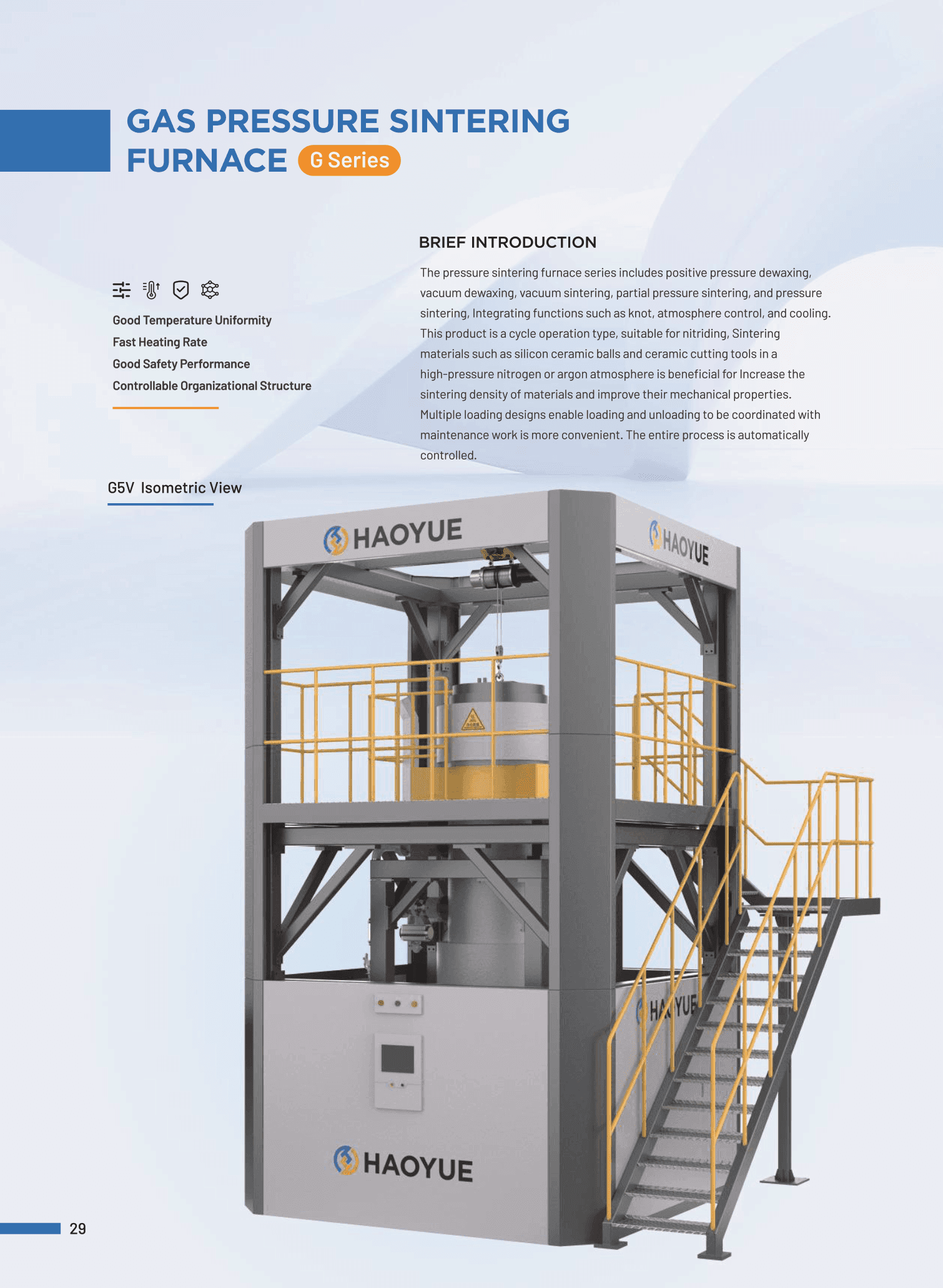

Brochure pages
G Series Gas Pressure Furnace Reference
